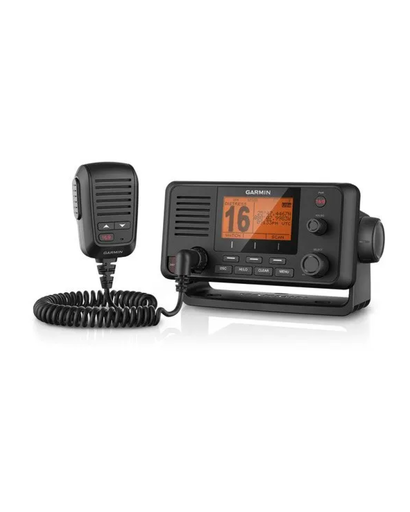

Specifications:
Stay Connected on the Water
AIS Display: Integrates Automatic Identification System (AIS) data on the chartplotter.
DSC Functionality: Supports Standard Class D Digital Selective Calling (DSC) for distress calls and direct communication via user-programmed MMSI.
Enhanced Safety: DSC can improve rescue response in emergency situations.
Transmit Power: 25 watts with built-in GPS for reliable communication.
Frequency Bands: Covers all U.S., Canadian, and international marine channels, plus 10 NOAA weather channels.
Dimensions and Weight
Unit Dimensions (HxWxD): 3.9” x 7.8” x 5.8” (9.8 x 19.7 x 14.9 cm).
Weight:
Radio without microphone: 42.8 oz (1.2 kg).
Microphone: 8.8 oz (0.25 kg).
Environmental Features
Water Rating: IPX7 (water-resistant under specified conditions).
Operating Temperature: -15°C to 70°C (5°F to 158°F).
Storage Temperature: -20°C to 70°C (-4°F to 158°F).
Compass-Safe Distance: 29.5” (75 cm).
Connectivity and Compatibility
NMEA Support: Compatible with NMEA 2000 and NMEA 0183 standards.
Digital Selective Calling: Class D certified.
Frequency Range: 156.050 MHz to 163.275 MHz (including weather channels).
Power Requirements
Operating Voltage: 10.8 - 15.6 VDC.
Current Draw:
Standby: 350 mA.
Receive: 600 mA.
Transmit: 2.0 A to 6.0 A (depending on output power from 1 W to 25 W).
Audio and Antenna Features
Hailer Output Power: 20 W at 4 Ω.
Hailer Horn Impedance: 4 Ω.
External Speaker Impedance: 4 Ω.
Antenna Connector: SO-239 (50 Ω).
Maximum Antenna Gain: 9 dBi.
